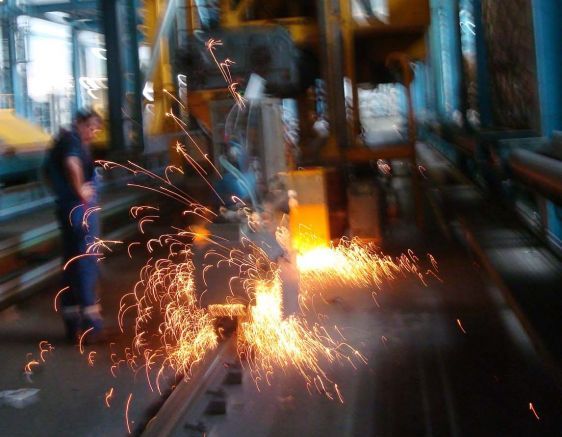

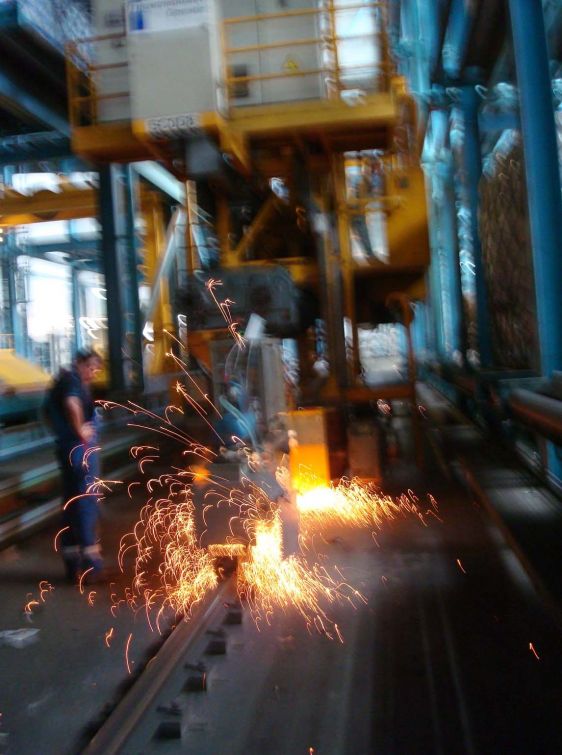

crane service croppedAlso the winch rails of high-performing cranes such as container cranes or rails of storage and retrieval systems are in frequent use, they likewise are subject to signs of wear and tear and have to be maintained regularly.

L&S Crane rail grinding machines can treat all types of winch and quay rails for moving the crane with a rail head width up to 140mm. The crane rail performance also includes a prior maintenance of rail joints, elimination of shellings or cracks and instauration of hinge points.

Furthermore crane rail measuring service is provided.

For further information about our performances in the field of crane rail service grinding please contact:
This email address is being protected from spambots. You need JavaScript enabled to view it.

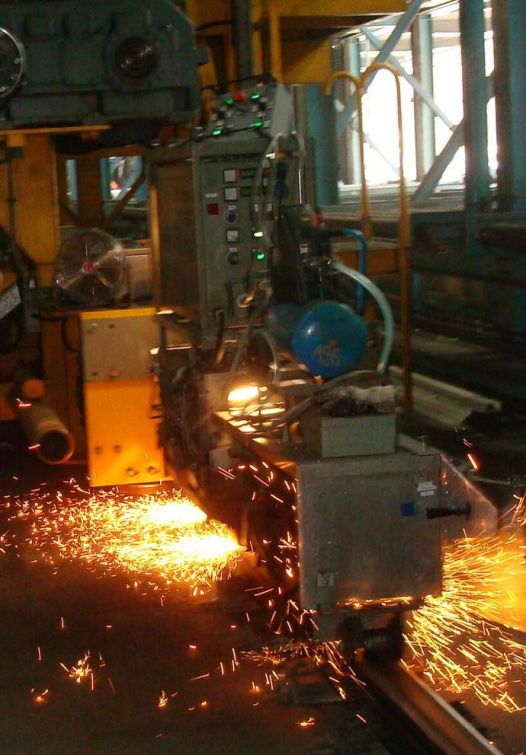

  • CRGM 1-2

    crgm1 2

    The grinding process of the crane rail grinding machine CRGM 1-2 is fully automatic through cable remote control. The ginding angle of each grinding motor is digitally displayed. The grinding unit can be adapted with less effort to the trolley travelling winch of the respective crane type.

    Number of grinding motors:     2 x 2

    Power of grinding motors:       up to 7,5 kW per motor

    Machinable rail width:              up to 140 mm rail head width

    Machinable grinding angles:    -20° field side of rail
                                                    +20° gauge side of rail

    This machine is only available for service.

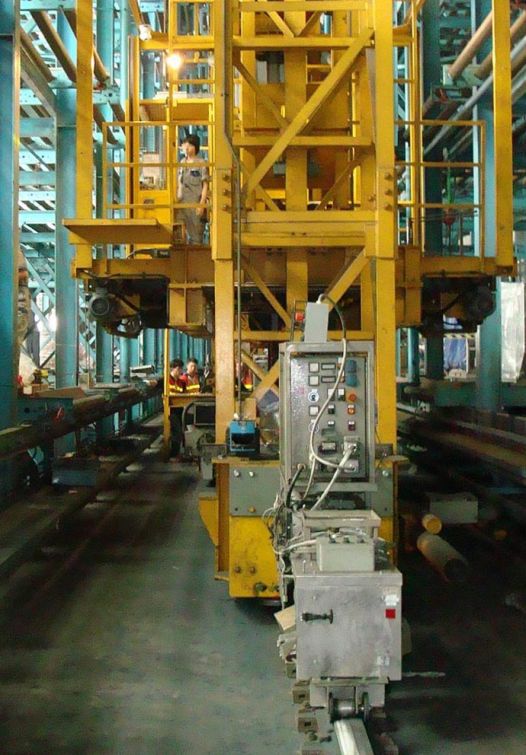

  • CRGM 1-3

    crgm1 3

    The grinding process of the crane rail grinding machine CRGM 1-3 is fully automatic through cable remote control. The ginding angle of each grinding motor is digitally displayed. The grinding unit can be adapted with less effort to the trolley travelling winch of the respective crane type.

    Number of grinding motors:     2 x 3

    Power of grinding motors:       up to 7,5 kW per motor

    Machinable rail width:              up to 140 mm rail head width

    Machinable grinding angles:    -90° field side of rail
                                                    +90° gauge side of rail

    This machine is only available for service.

crane service croppedAlso the winch rails of high-performing cranes such as container cranes or rails of storage and retrieval systems are in frequent use, they likewise are subject to signs of wear and tear and have to be maintained regularly.

L&S Crane rail grinding machines can treat all types of winch and quay rails for moving the crane with a rail head width up to 140mm. The crane rail performance also includes a prior maintenance of rail joints, elimination of shellings or cracks and instauration of hinge points.

Furthermore crane rail measuring service is provided.

For further information about our performances in the field of crane rail service grinding please contact:
This email address is being protected from spambots. You need JavaScript enabled to view it.



  • CRGM 1-2

    crgm1 2

    The grinding process of the crane rail grinding machine CRGM 1-2 is fully automatic through cable remote control. The ginding angle of each grinding motor is digitally displayed. The grinding unit can be adapted with less effort to the trolley travelling winch of the respective crane type.

    Number of grinding motors:     2 x 2

    Power of grinding motors:       up to 7,5 kW per motor

    Machinable rail width:              up to 140 mm rail head width

    Machinable grinding angles:    -20° field side of rail
                                                    +20° gauge side of rail

    This machine is only available for service.

  • CRGM 1-3

    crgm1 3

    The grinding process of the crane rail grinding machine CRGM 1-3 is fully automatic through cable remote control. The ginding angle of each grinding motor is digitally displayed. The grinding unit can be adapted with less effort to the trolley travelling winch of the respective crane type.

    Number of grinding motors:     2 x 3

    Power of grinding motors:       up to 7,5 kW per motor

    Machinable rail width:              up to 140 mm rail head width

    Machinable grinding angles:    -90° field side of rail
                                                    +90° gauge side of rail

    This machine is only available for service.
